Home ProductsLow Frequency Online UPS

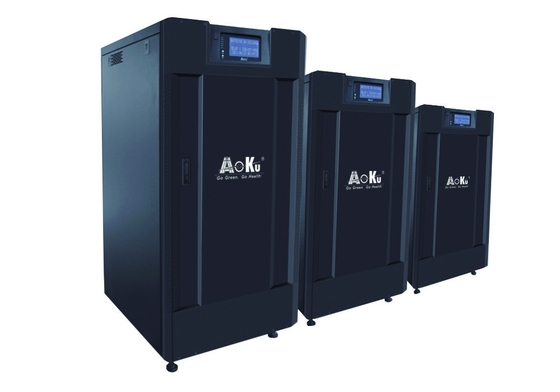

AoKu Online UPS with Pure Sine Wave, threes Phases input and output, 208V / 380V, 50Hz / 60Hz, DSP control

I'm Online Chat Now
China AoKu Electronics Co., Limited certification
Dear Tom, We got your UPS and tested. It works perfectly (Output Voltage 230.1 Vac when UPS is working via batteries. Perfect. Thank you.

—— Manel Martín

Tom, I just now i returned to my country safely. Thank you for all your kindness to me. I miss you. I will place the next order to you soon.

—— Muhammad Khan

AoKu Online UPS with Pure Sine Wave, threes Phases input and output, 208V / 380V, 50Hz / 60Hz, DSP control

AoKu Online UPS with Pure Sine Wave, threes Phases input and output, 208V / 380V, 50Hz / 60Hz, DSP control
AoKu Online UPS with Pure Sine Wave, threes Phases input and output, 208V / 380V, 50Hz / 60Hz, DSP control

Large Image :  AoKu Online UPS with Pure Sine Wave, threes Phases input and output, 208V / 380V, 50Hz / 60Hz, DSP control Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: AoKu or OEM
Certification: ISO9001, ISO14001, CE
Model Number: GP33 Series 20KVA-500KVA
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: USD
Packaging Details: Wooden Case
Delivery Time: 7-10 Working Days
Detailed Product Description



Product Introduction:

    GP33 series is Online Double Conversion UPS, with Isolated Gate Bipolar Transistors (IGBT) that performs excellent conversion of sine wave output from high frequency PWM inverter. The series is applicable to small and medium-sized date centers, network management center, computer rooms for enterprises, and able to provide solutions to conditions like voltage instantaneous drop –off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion and frequency fluctuation, it guarantees to offer safe and reliable power supply for any loads to user.



Product Feature:

  1. High-efficient DSP chip. The digital Ti DSP controlling chip provides precise date processing capability with excellent performance in output and reliability.
  2. Outstanding electric property. The efficiency of the machines is as high as 92% and reaches over 98% in the ECO mode, which can help to reduce the power loss of UPS.
  3. Good looking and excellent hardware. Fashion and elegant front panel with the big LCD touchable screen as the operation surface, it is easy to control and get the information. It can remotely controlled by setting the EPO button.
  4. N+X parallel redundancy (compatible to battery share in the parallel mode).UPS can inbuilt parallel mode without any other external accessories, which help the customer to extend the system capacity with low cost. N stands for the minimum amount of UPS in the load and X stands for the amount of redundant UPS in the system. The bigger the number of X is, the higher the reliability of the system.
  5. Frontal-board operation and maintenance. The full consideration of customer’s efficiency in using the UPS is embodied in the module design and frontal-board maintenance, which saves time for repairing and improves the machine’s usability.
  6. Twin-channel line input. The UPS provides customer security in power supply with intelligent choice between two-line or one-line input according to the actual condition.
  7. Remote monitoring. Communication interfaces like RS232 intelligent slot are provided, modem, SNMP(RJ45)(SNMP adaptive software is supplied by the producer) are available for the realization of remote management and monitoring which enriches the customer’s choice out of the monitoring demand.
  8. Intelligent management of battery charging and discharging. The CPU-controlled advanced intelligent charging of battery enables the UPS’s charger to rectify the charging parameter, and according to the different environment provide the optimum charging modes.
  9. Flexible battery arrangement. GP33 series can be achieved through the parameter resetting to arrange the amount of accumulator in each battery (32,30 or 28) flexibly.
  10. Flexible arrangement, change due to the need. Abundant extended function, meet customers’ needs in all aspects. We supply on-line maintenance, parallel components and dustproof component.



AoKu Online UPS with Pure Sine Wave, threes Phases input and output, 208V / 380V, 50Hz / 60Hz, DSP control 0

AoKu Online UPS with Pure Sine Wave, threes Phases input and output, 208V / 380V, 50Hz / 60Hz, DSP control 1
