| Battery Type: | Lithium Battery | Warranty: | 1 Year |
|---|
Charging Voltage: 3.65V 7.3V 10.95V 14.6V 18.25V 21.9V 25.55V 29.2V 43.8V 58.4V 73V(3.65V/Cell)
Input:100-240Vac 50/60Hz
Charge mode: CC--CV--Float Mode
Input plug: Customized
Output DC Connector:

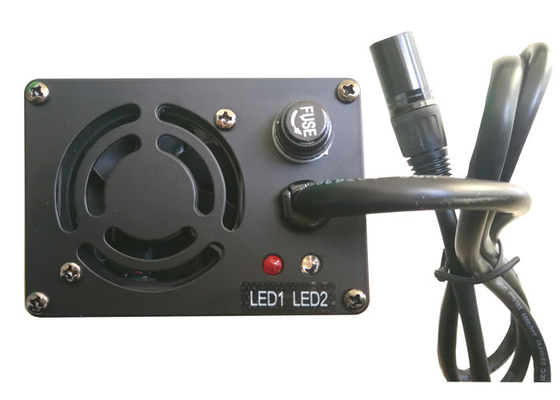

Led display:
Red--Charging
Green--ful charge
Safe Protection:
short-circuit protection
Over-current protection
Polarity Reverse protection
Over-voltage protection
| General Data sheet | ||
| Ripple And Noise | Output voltage 1%, Ripple&Noise≤250mv | |
| Leakage Current | 0.5mA(max) at input 120V AC | |
| Drop Test | single free drop from 0.75m to 0.3mm wood board for 6 times one cycle, components are not break off, pass Hi-Pot test | |
| Burn-In Test | 100% load, 2hour | |
| Strain Relief Bend Test | 150g, +/-60 degree, 3000 times, 40 times/ per minute | |
| MTBF | 50,000 hours@ 25℃ | |
| Operating Temperature Range | 0--40°C | |
| Storage Temperature Range | -20 --- 85°C | |
| High Humidity Operation | + 40 °C and 90 ~ 95% Humidity | |
| Safe Protection | Over-load, Over-current, Short-circuit, Polarity reverse protection | |
| Safe Certification | CE FCC ROHS | |
