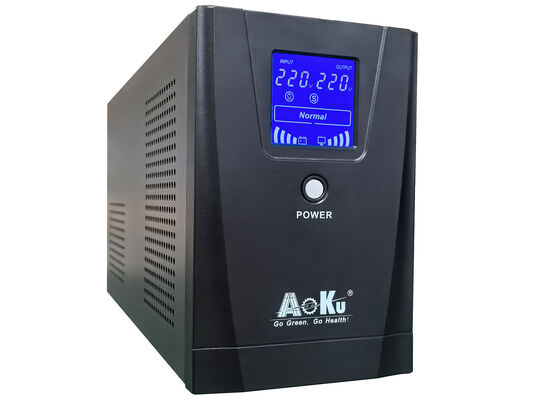

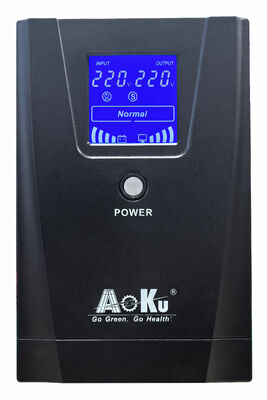

AoKu Line Interactive UPS SL-3K, 3KVA, 2400W, Metal Case, LCD, Pure Sine Wave Output

Large Image : AoKu Line Interactive UPS SL-3K, 3KVA, 2400W, Metal Case, LCD, Pure Sine Wave Output

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	AoKu or OEM
Certification:	ISO9001, ISO14001, CE
Model Number:	SL-3K, 3KVA, 2400W

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	USD
Packaging Details:	Cartons
Delivery Time:	7-10 Working Days

Contact Now

Detailed Product Description

Type:	Line Interactive UPS	Output Wave:	Pure Sine Wave （Battery Mode)
Input Voltagerange:	145-275V	Output Voltage Range:	200-240V(AC Mode), 220V+/-5%(Battery Mode)
Phase:	Single Phase	AVR:	Yes
Battery Type:	Sealed Lead Acid Battery	Typical Recharge Time:	6-8 Hours Up To 90% Capacity
Display Type:	LCD+LED	Application:	COMPUTER，PC
Communicationports:	USB (Optional)

Product Overview:

The SL series UPS employs advanced CPU-integrated control technology to deliver pure sine wave output. Featuring a wide input voltage range and rapid transfer speed, it incorporates automatic voltage regulation and offers selectable charging currents. Models with extended backup times are available, supporting external battery connections to meet specific user requirements and enable unlimited backup duration.

Key Features:

Dual CPU control system

Pure Sine Wave Output

Generator compatibility

Silent operation mode

Automatic switch to battery mode during input overvoltage or undervoltage

Output overload and short-circuit protection

Expandable backup time via external battery connection

High-current charging capability for large-capacity batteries

Optional USB ports with intelligent monitoring functionality

Applications:

Suitable for household PCs, office equipment in enterprises and institutions, small communication switchboards and servers, LAN devices, commercial POS systems, small workstations and peripherals, banking terminals, ATM systems, and similar applications.

Specificatons:

Model	SL-1K	SL-1.5K	SL-2K	SL-3K	SL-5KL	SL-1KL	SL-1.5KL	SL-2KL	SL-3KL	SL-5KL
Capacity	1000VA	1500VA	2000VA	3000VA	5000VA	1000VA	1500VA	2000VA	3000VA	5000VA
	800W	1200W	1600W	2400W	4000W	800W	1200W	1600W	2400W	4000W

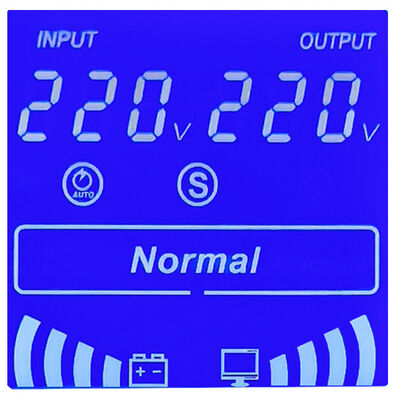

Display	LCD display/LED display optional
AC Mode
Input voltage range	145~275Vac
Input frequency	45~65Hz (Auto sensing)
Output voltage range	200~240Vac
Overcurrent Protection	Breaker
Inverter Mode
Output voltage range	220Vac±5%
Output frequency	50±0.5Hz / 60±0.5Hz (Auto Sensing)
Power factor	0.8
Output wave form	Pure sine wave
Transfer time	Typical 2~6ms, Max.10ms.
Overload capability	Automally shut down in 60sec while with 110% load, and shut down in 5sec while with 120% load
Overcurrent Protection	System shuts down automatically within 20ms
BATTERY
Type	Sealed Maintenance-Free Valve Regulated Lead-Acid (VRLA) Battery
DC Voltage	DC 24V		DC 48V		DC 48V	DC 24V			DC 48V
QTY & Capacity	2 pcs	2 pcs	4pcs	4pcs	4pcs	External batteries, capacity depends on user's choice.
	12V7Ah	12V9Ah	12V7Ah	12V9Ah	12V17Ah
Charging current	/						5A/10A(Optional)
Charging period	6~8 hours recover to 90% capacity					Depends on the batteries connected.
PROTECTION
PROTECTIONS	1. Auto re-starts when AC recovers
	2. Automatic charging (offline charging)
	3. Battery low voltage protection
	4. Overload & Short circuit protection
	4.Over current protection (Breaker for AC mode; System automaticlly shut down wihin 20ms in Inverter mode).
PHYSICAL
Unit dimension (mm)	384122192		475192330		30585141	345122192		455195330
Net weight (1pc, kg)	9	12.1	22.5	24.5	3.8	6	8.1	17.3	20.6	26
MANAGEMENT
USB	Optional
Remark: Product specifications are subject to change without notice.
