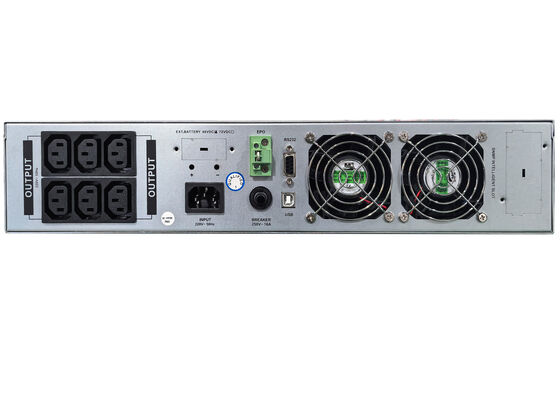

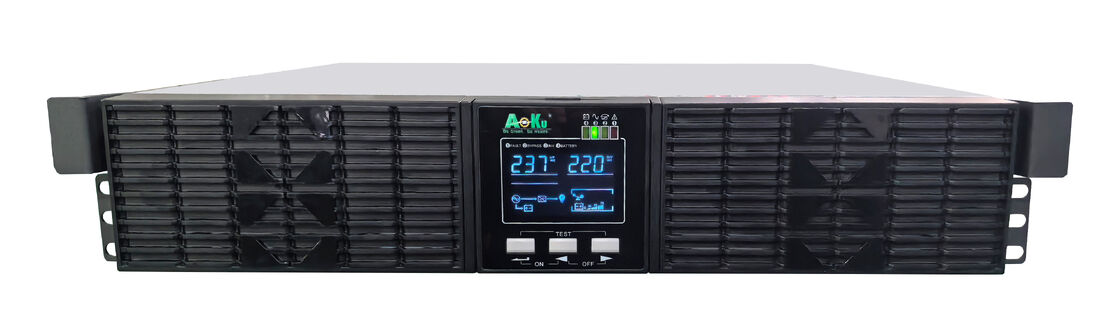

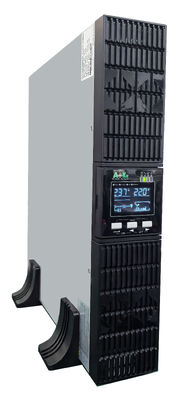

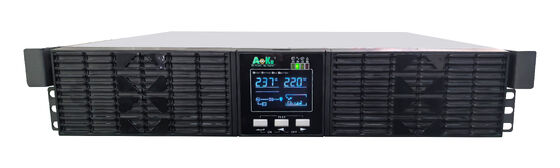

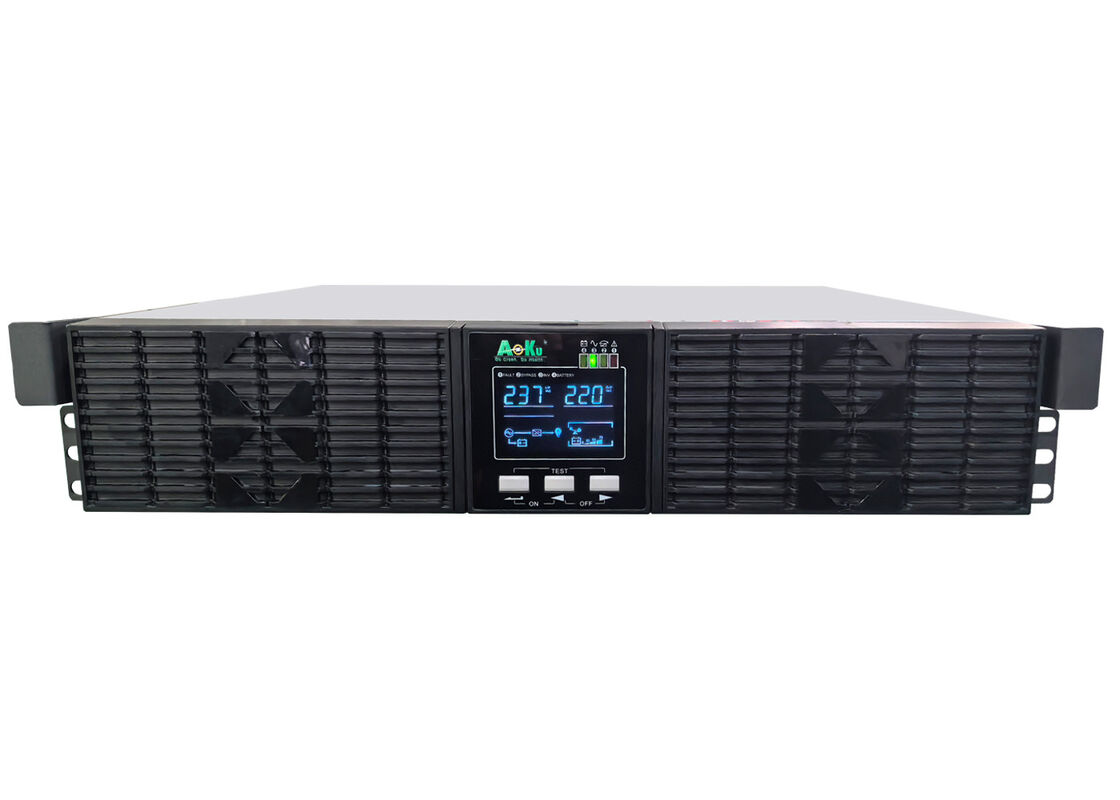

AoKu High Frequency Online UPS, Rack Mounted Design 1KVA 1000W, Pure Sine Wave

Large Image : AoKu High Frequency Online UPS, Rack Mounted Design 1KVA 1000W, Pure Sine Wave

Product Details:

Place of Origin:	CHINA
Brand Name:	AoKu
Certification:	ISO9001, CE
Model Number:	PT-1KR, PT-1KRS, 1KVA, 1000W

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Packaging Details:	Carton
Delivery Time:	3-4 Weeks
Payment Terms:	T/T

Contact Now

Detailed Product Description

Product Overview

The PT Rack-Mounted Series is a next-generation line of high-frequency, rack-mount online UPS systems, available in power ratings from 1-3kVA and 6-10kVA. Featuring a standard 2U rack design, this uninterruptible power supply (UPS) allows for the parallel connection of multiple battery packs to support diverse application needs. Its compact form factor significantly minimizes the required installation space.

Utilizing advanced 3-level technology and a soft-switching design, this double-conversion UPS reduces switching losses and enhances overall performance. It achieves a maximum efficiency of up to 95.5%, and its Smart ECO Mode can elevate efficiency to 98.5%, delivering substantial energy savings.

The RT Series Online UPS provides reliable power backup for a wide range of home and business equipment, including PCs, routers, Wi-Fi systems, and televisions.

Main Features

Rack-Mount Design: 1kVA to 10kVA models in a space-saving 2U form factor.
Configurable Charging: Selectable digital charging current (1-12A) for easy compatibility with various battery configurations.
Flexible Input: Optional wide input voltage range (208/220/230/240VAC).
Superior Performance: High output power factor (up to 1.0) and input power factor (up to 0.99).
High Efficiency: Up to 95.5% operational efficiency, reducing energy loss.
Smart ECO Mode: Maximizes energy savings with efficiency up to 98.5%.
Serviceability: Designed for faster and easier maintenance.

Applications

The PT Rack-Mounted Series UPS provides online, double-conversion protection with a true sine wave output, making it ideal for a wide array of critical applications, including:

High-Density Server Systems
Corporate Servers
Mission-Critical Devices
Other Sensitive Electronic Equipment

Specifications:

Model		PT-1KR	PT-1KRS	PT-2KR	PT-2KRS	PT-3KR	PT-3KRS
Rated Power	VA/W	1kVA/1kW		2kVA/2kW		3kVA/3kW
Topology		Double-Conversion Online UPS
Input/Output Phase		Single-Phase Input / Single-Phase Output
Input	Input Wiring	Single-phase two-wire (L, N) + Protective Earth (PE)
	Voltage Range	Line-to-Neutral Voltage: 110–300VAC
	Frequency Range	44–56Hz or 54–66Hz (default)
	Power Factor	≥0.99
Output	Output Wiring	Single-phase two-wire (L, N) + Protective Earth (PE)
	Rated Voltage	208/220/230/240VAC
	Voltage Accuracy	±1%
	Frequency	50/60Hz ±6Hz (phase-locked to utility) / 50/60Hz ±0.1% (fixed frequency mode)
	Waveform	Pure Sine Wave
	Output THDv	≤3% (linear load) / ≤5% (nonlinear load)
	Overload Capacity	Utility Mode: 30 min @ 102%–110% load 10 min @ 110%–130% load 30 sec @ 130%–150% load 200 ms @ >150% load			Battery Mode: 1 min @ 102%–110% load 10 sec @ 110%–130% load 3 sec @ 130%–150% load 200 ms @ >150% load
Efficiency	Utility Mode	93.50%		94.50%		94.50%
	Battery Mode	90.50%		93.50%		93.50%
Battery & Charger	DC Voltage/QTY	36VDC	24VDC/2pcs	48VDC or 72VDC	48VDC/4pcs	96VDC	72VDC/6pcs
	Battery Model	/	12V7Ah	/	12V7Ah	/	12V7Ah
	Charging Current	Standard UPS (built-in battery): 1A ; Extended runtime (external battery): Default 5A (configurable up to 12A)
Physical	Size (WxDxH) mm	438x413x88 (2U)					438x533x88 (2U)
	Weight(KG)	5.3	10	6.2	15.6	6.4	21.6

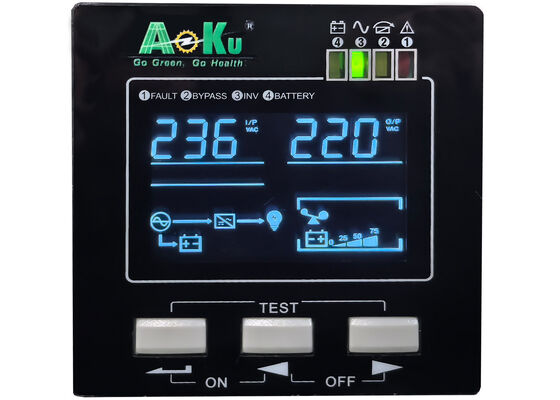

Interface	LCD Display	Shows input/output voltage, frequency, load percentage, operation mode, and system status
	Communication	RS232, USB, EPO
	Optional	Network monitoring card(SNMP) (supports PC/mobile remote monitoring, MODBUS, dry contact card)
Environmental Parameters	Temperature	-10°C ~ 45°C
	Humidity	0–98% (non-condensing)
	Noise Level	<50dB @ 1 meter

Remark: Product specifications are subject to change without notice.
